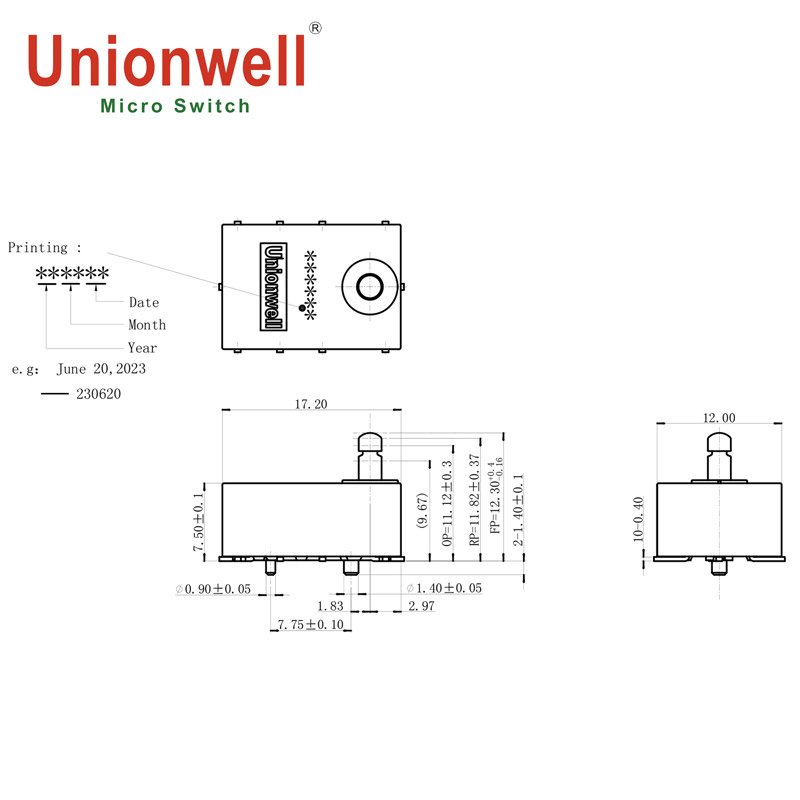

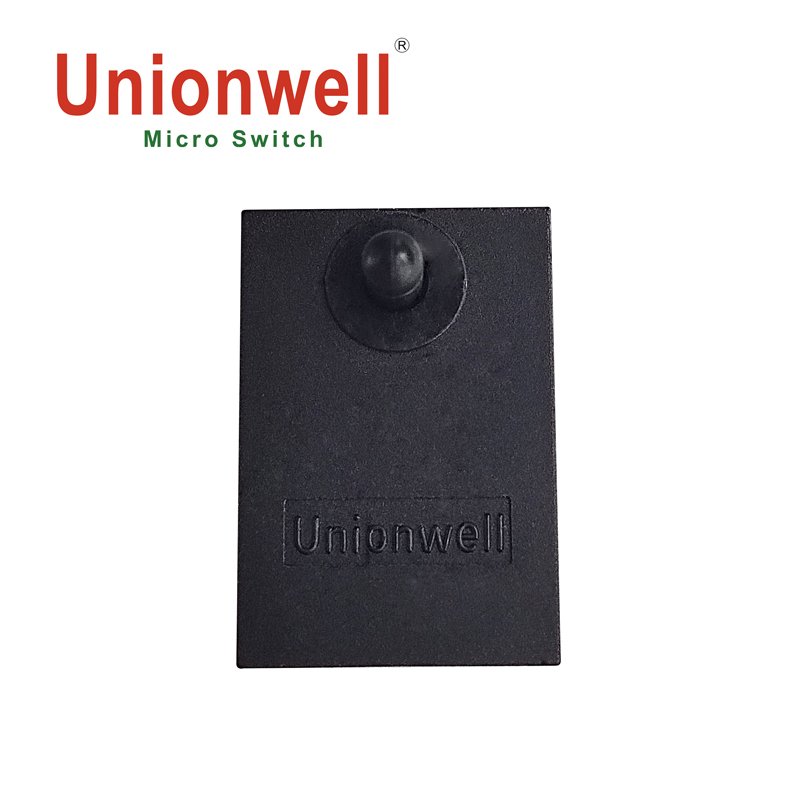

Triple Circuit Loop Momentary Micro Switch G307B
Place Of Origin:Guangdong, China (Mainland)
Brand Name:Unionwell
Model Number:G307B-150R00AU
Rating:50mA 18VDC 50muA 5VDC
Operating Force(Max Value): 150gf Max
Terminals SMD Terminal Lever:Pin Plunger Only
Circuitry:DPDT 1, 2,3 Clipping Contact
Share This Page
The Features Of Triple Circuit Loop Momentary Micro Switch
- Momentary structure, dual loop synchronization time ≤50ms;
- Small size, compact structure, high reliability, long life;
- Applied to micro-current load industries such as automotive industry and electronic equipment;
- Two welding processes options – DIP or SMT.
The Parameters Of Triple Circuit Loop Momentary Micro Switch
| Rating | G307B | 50mA 18VDC 50μA 5VDC |
| Operating Frequency | Electrical | 15~20 Cycles/Min 1~100mm/s |
| Mechanical | 15~20 Cycles/Min | |
| Initial Contact Resistance | 75mΩ Max. | |
| Insulation Resistance | 100mΩ Min. | |
| Dielectric Strength | Between Terminals: AC100V Between Terminal and Housing: AC100V |
|
| Operating Temperature | -40°C ~+85°C | |
| Service Life | Electrical | 150,000 Cycles |
| Mechanical | 150,000 Cycles | |
What is a microswitch?A micro switch is a get-in-touch-with system with a short call period, and a snap-action device utilizes a pointed-out movement and an indicated force to shift activity. It is dealt with through a layer and also possesses a riding pole outside of it, considering that the switch’s call distance is fairly small. Tiny, as a result, the title micro switch, also called a vulnerable button. The power message sign is SM.
