Subminiature Micro Switch Wires To The Left Side
Model Number:G306-150G31CA-300-T001U
Max Operating Force At Pin Plunger:150gf Max
Terminal Style:Wires To The Left Side
Lever Type:31# Lever
Circuit Code:SPST-NO
Shape And Posts:M3 Type
Wire Length:300mm Length Standard Lead Wires AVSS 0.3㎟
Share This Page
The Features Of Subminiature Micro Switch Wires To The Left Side
- High reliability and good resistance to environment, sealed micro switch with long travel
- With long travel, can work oven excellently without lever
- A high-reliability sliding contact structure
- With high-temperature resistance(+85 °C) and drip-droop structure, it can be widely applied in different environments, IP67 rated(except for terminal)
- Widely applied for home appliances, electronic equipment, automatic equipment, communication equipment, auto electronics, apparatus and instruments, electric tools, etc.
The Parameters Of Subminiature Micro Switch Wires To The Left Side
| Operating Speed | 1~500mm/s | |
| Operating Frequency | 120 cycles/min | |
| Insulation Resistance | 100MΩ Min | |
| Contact Resistance(initiative) | With Terminals Type | 100mΩ Max |
| With Wire Type | 500mΩ Max(300mm Wire Length) | |
| Voltage Resistance | Between Terminals | AC500V,50/60HZ,1min |
| Between Terminals And Uncharged Metal Parts | AC1000V,50/60HZ,1min | |
| Vibration Resistance | No Transformation Action | 10-55 HZ |
| Service Life | Electrical | 300,000/cycles DC30V 0.1A DC14V 10mA |
| Mechanical | 300,000/cycles | |
| Protection Lever | IEC IP67(Except Terminals) | |
| Storage Temperature | -40°C~+85, 60%RH Max | |
| Storage Humidity | 95%RH Max(5℃-35℃） | |

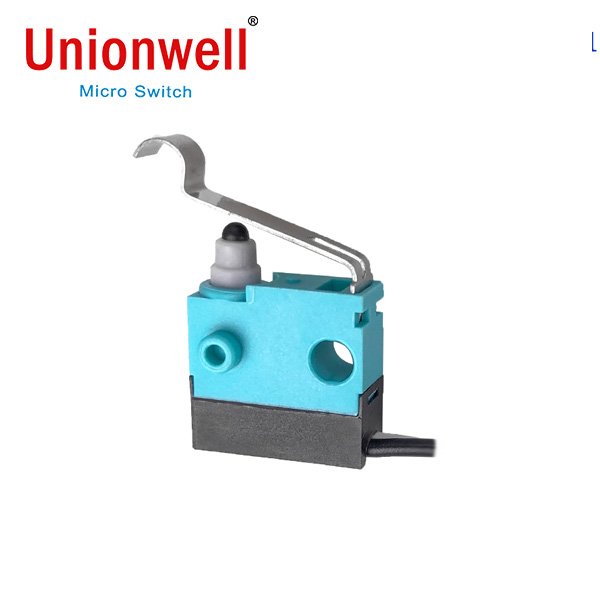

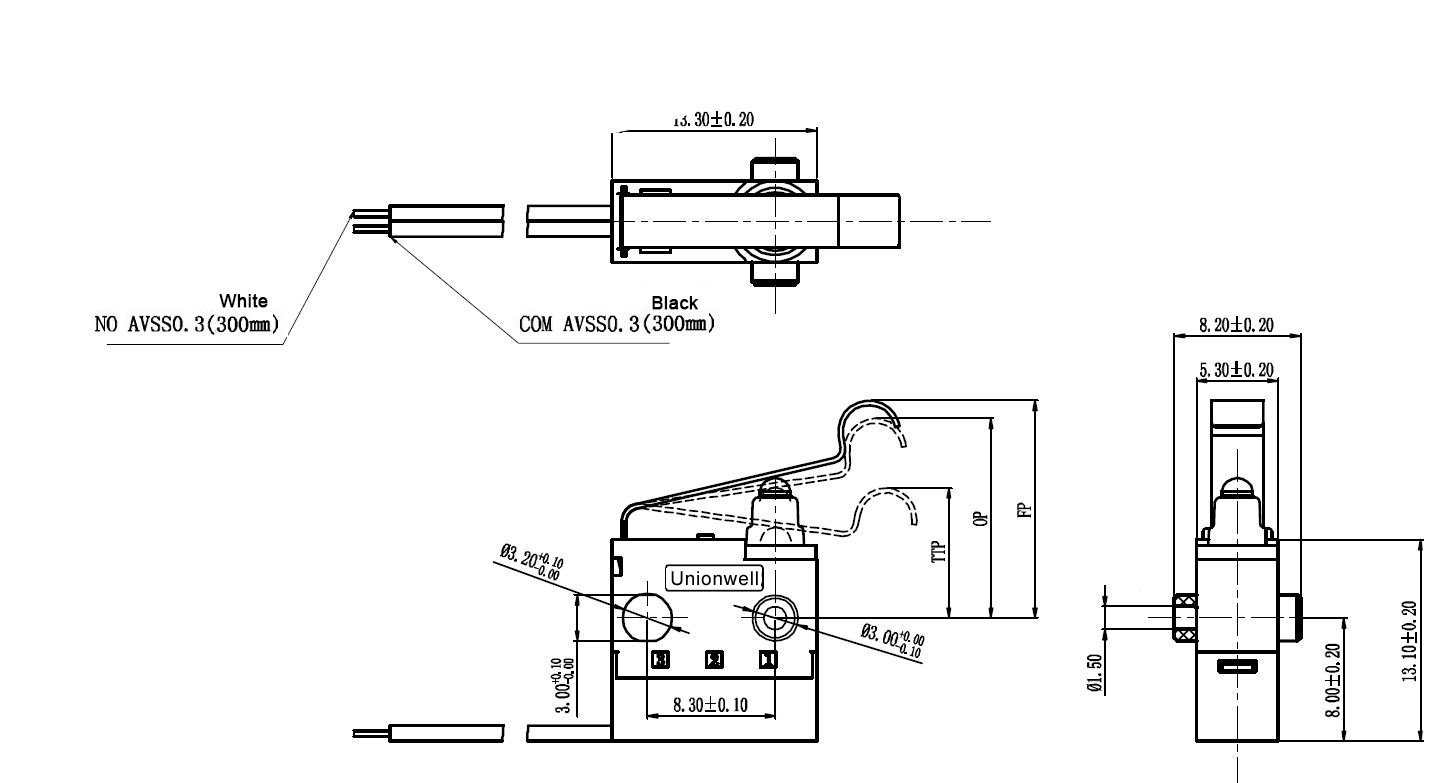

The Pictures Of Subminiature Micro Switch Wires To The Left Side
What is a microswitch?A micro switch is a get-in-touch-with system with a short call period, and a snap-action device utilizes a pointed-out movement and an indicated force to shift activity. It is dealt with through a layer and also possesses a riding pole outside of it, considering that the switch’s call distance is fairly small. Tiny, as a result, the title micro switch, also called a vulnerable button. The power message sign is SM.
