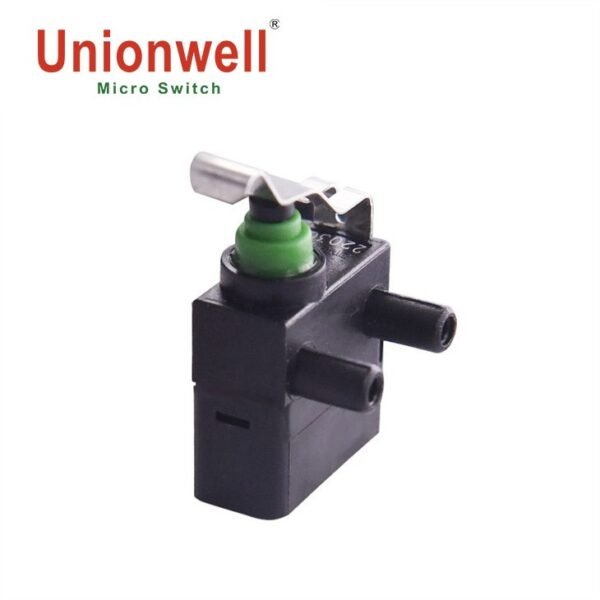

IP67 Car Micro Switch

Small Compact Size
Long Life And High Reliability
Built-in Resistance, The Resistance Value Can Be Customized Widely Used In The New Energy Vehicle

Share This Page

Place of Origin	Guangdong, China (Mainland)
Brand Name	Unionwell
Model Number	G303R-130F84C14K-149-T389U
Electrical Rating	0.1A 125/250VAC 48VDC; 3A 12VDC μ 40T85 1E5
Built-in PCB Circuit Board	Without Built-in PCB Circuit Board
Operating Force	130gf Max

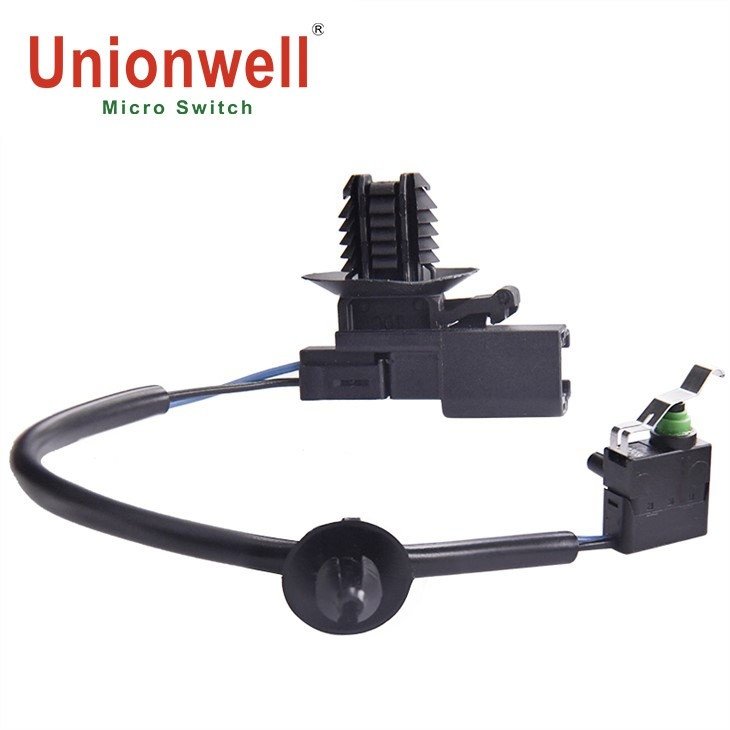

Terminal Type	Molded Lead Wires On Right Side (Plunger Side)
Lever Type	84# Lever
Circuit Code	SPST-NO
Shape And Posts	C1 Type Left Posts
Posts Dimension	Φ2.95X5.0mm Posts
