Dual Circuit Loop Momentary Micro Switch G307A
Model Numbe:G307A-150R00BAU
Rating:50mA 18VDC50μA 5VDC
Operating Force(Max Value):150gf Max
Terminals:SMD terminal
Lever:Pin Plunger Only

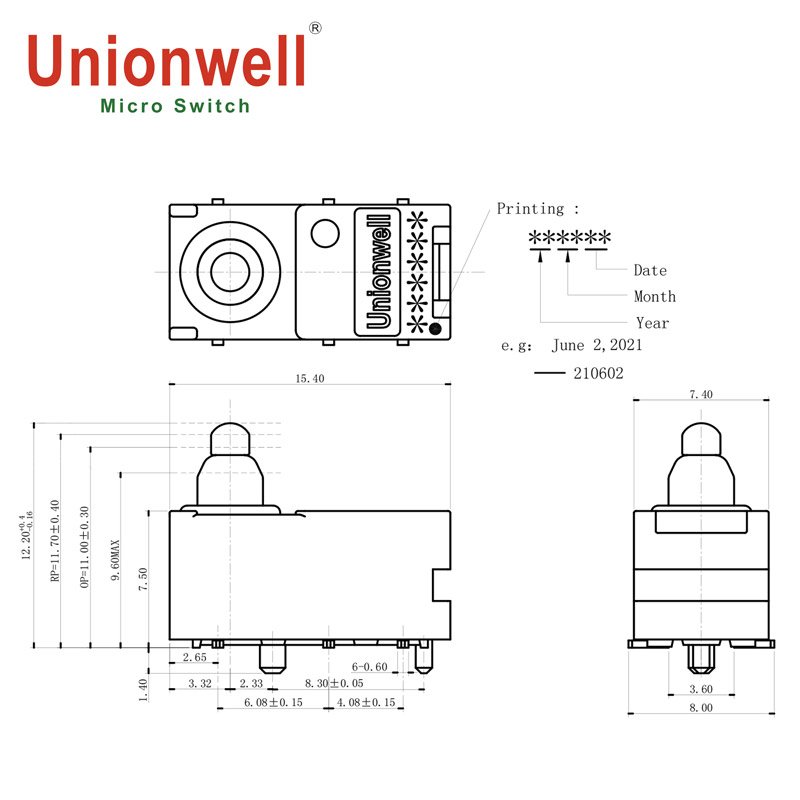

Switch Dimensions:L*W*H 15.4*7.4*7.5
Circuitry:DPDT 1, 2,3 Clipping Contact
Share This Page
The Features Of DPDT Momentary Micro Switch Pin Plunger
- Small size, compact structure, high reliability, long life;
- Applied to micro-current load industries such as automotive industry and electronic equipment;
- Two welding processes options – DIP or SMT;
- High protection performance, protection level IP67
- Momentary structure, dual loop synchronization time ≤15ms;
The Parameters Of DPDT Momentary Micro Switch Pin Plunger
| Rating | G307A | 50mA 18VDC 50μA 5VDC |
| Operating Frequency | Electrical | 15~20 Cycles/Min 1~100mm/s |
| Mechanical | 15~20 Cycles/Min | |
| Initial Contact Resistance | 75mΩ Max. | |
| Insulation Resistance | 100mΩ Min. | |
| Dielectric Strength | Between Terminals: AC100V Between Terminal and Housing: AC100V |
|
| Operating Temperature | -40°C ~+85°C | |
| Service Life | Electrical | 300,000 Cycles |
| Mechanical | 500,000 Cycles | |

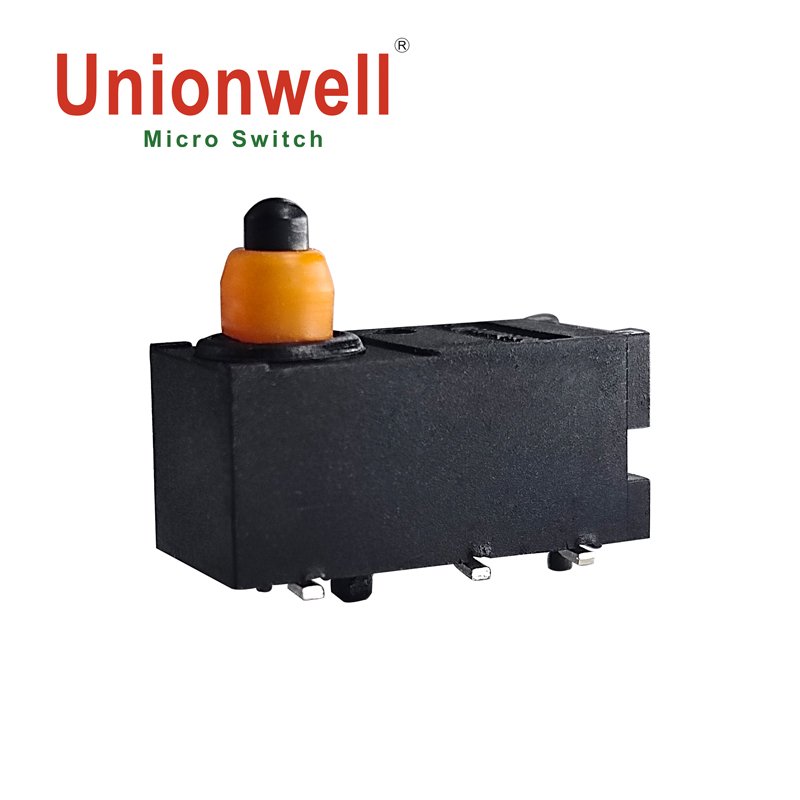

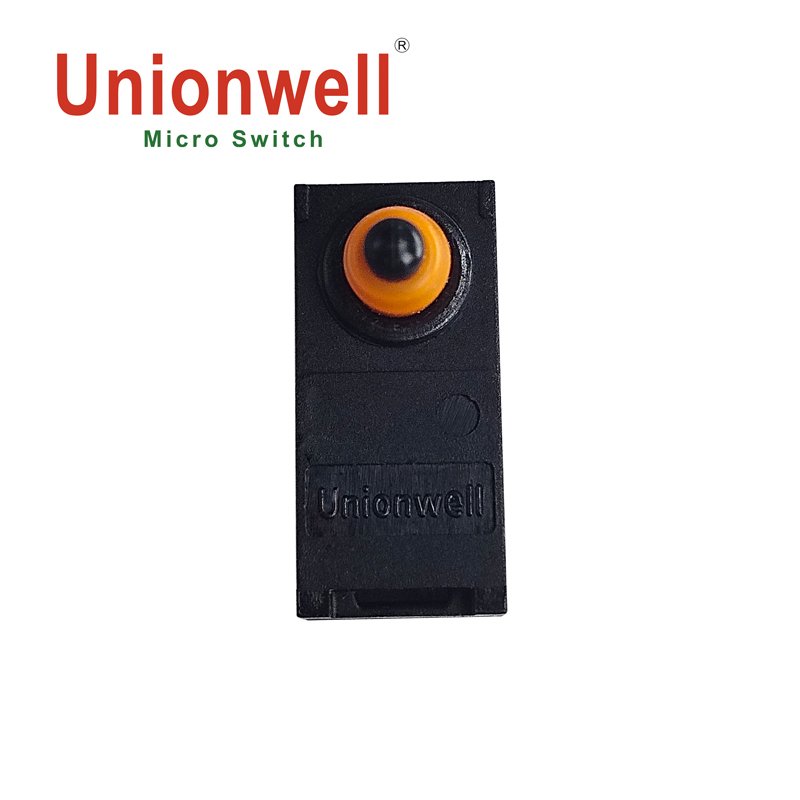

The Photo Of DPDT Momentary Micro Switch Pin Plunger
What is a microswitch?A micro switch is a get-in-touch-with system with a short call period, and a snap-action device utilizes a pointed-out movement and an indicated force to shift activity. It is dealt with through a layer and also possesses a riding pole outside of it, considering that the switch’s call distance is fairly small. Tiny, as a result, the title micro switch, also called a vulnerable button. The power message sign is SM.
